Name: High-Precision VSG-Series Vertical Seam Grinding Machine with Hydraulic Locking and Intelligent Control
Brand: Foshan Star Power Technology Co.Ltd
SKU: VSG-500A
Price: 100000.00 USD
Availability: InStock

Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat

Eigenschaften

Technische Daten

Spezifikation: Nach Waschbecken

Hervorheben:

High-Precision Vertical Seam Grinding Machine

Hydraulic Locking Seam Polishing Machine

Intelligent Control VSG-Series Grinding Machine

Grundinformation

Herkunftsort: Guangdong, China

Markenname: Star Power

Zertifizierung: CU, ISO

Modellnummer: VSG-500A

Zahlung und Versand AGB

Verpackung Informationen: Seaworthy Packing

Lieferzeit: 30-50 Arbeitstage

Zahlungsbedingungen: L/c, t/t

Versorgungsmaterial-Fähigkeit: 30 Set/Sets pro Jahr

Galerie

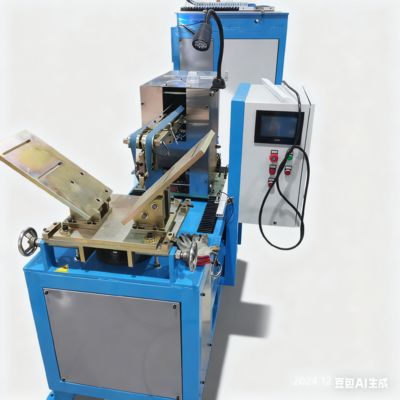

High-Precision VSG-Series Vertical Seam Grinding Machine with Hydraulic Locking and Intelligent Control

Produkt-Beschreibung

PrecisionVert VSG-Series Vertical Seam Grinding & Polishing Machine

The InduHydraLock VSG-Series Vertical Seam Grinding Machine is a high-precision industrial equipment designed for grinding vertical seams in various metal workpieces. It features advanced hydraulic locking technology and intelligent control systems for stable, accurate grinding operations.

This machine is ideal for automotive manufacturing, aerospace, and metal processing industries. It handles steel, aluminum alloys, copper alloys, and other materials with excellent grinding quality and consistency.

The user-friendly interface and automated features simplify operation, reducing the need for highly skilled operators while improving production efficiency. Its robust construction and durable components ensure long service life with minimal maintenance.

Core Features

Achieves Ra 0.8μm ultra-fine surface finish through multi-stage grinding (coarse → fine → polishing)
Vertical clamping structure prevents workpiece deformation (ideal for thin-walled parts and fragile materials)
Adjustable grinding pressure (0.5-5bar) and variable speed grinding heads (500-3000rpm) for different material hardness
3-5 times faster than manual processing with consistent accuracy (±0.02mm)
7-inch touchscreen interface (B/C/D models) with preset parameters for quick setup
Built-in dust collection reduces emissions by ≥90%

Applications

Construction (curtain wall seams), automotive (body component seams), aerospace (light alloy part seams), home appliances (stainless steel tank seams), and furniture (stone countertop seams).

Technical Specifications

Parameter Category	VSG-500A (Manual)	VSG-1000B (Semi-Auto)	VSG-1500C (Full-Auto)	VSG-2000D (Heavy-Duty)
Processing Capacity	Max seam length: 500mm Seam width: 2-20mm	Max seam length: 1000mm Seam width: 2-30mm	Max seam length: 1500mm Seam width: 2-40mm	Max seam length: 2000mm Seam width: 5-50mm
Grinding System	Speed: 1000-2000rpm (fixed) Pressure: Manual (0.5-3bar)	Speed: 800-2500rpm (adjustable) Pressure: Pneumatic (0.5-4bar)	Speed: 500-3000rpm (stepless) Pressure: PLC (0.5-4.5bar)	Speed: 500-2800rpm (stepless) Pressure: Hydraulic (1-5bar)
Workpiece Clamping	Manual clamp Max thickness: 50mm	Pneumatic clamp Max thickness: 80mm	Electric clamp with sensor Max thickness: 100mm	Hydraulic clamp with anti-slip Max thickness: 150mm
Control System	Mechanical knob	5-inch LCD	7-inch touchscreen + PLC	10-inch touchscreen + IoT
Power Supply	220V/50Hz; 1.5kW	380V/50Hz; 3kW	380V/50Hz; 4.5kW	380V/50Hz; 7.5kW
Certifications	CE	CE, ISO 9001	CE, ISO 9001	CE, ISO 9001

About Foshan Star Power Technology

Founded in 2022 and based in Foshan, China, we specialize in high-precision CNC technology and efficient production solutions. Our equipment enables laser cutting, bending, and welding operations for sink manufacturing and other metal processing applications.
